Red light therapy mask user guide:
1. Technology Introduction
Wavelength Specifications
• NIR (Near-Infrared): 850\text{ nm} / 1072\text{ nm}
• Red Light: 630\text{ nm}
• Crimson Light: 660\text{ nm}
• Orange Light: 605\text{ nm}
2. What’s included?
1. Face Mask x1
2. Straps x2
3. Controller x1
4. USB Cable x1
5. Eye Protector x2
6. User Manual
3. Controller Diagram & Layout
+------------------------+
| [Output 1] [Output 2] | <-- Power Output x2 (Top)
+------------------------+
| * * * 5Min | <-- Intensity Level (I, II, III)
| I II III 10Min | <-- Time Selection (5m, 10m, 15m)
| (*) | <-- Mode LED
+------------------------+
| ( + ) | <-- Intensity Key (+)
| (M) (Power) (T) | <-- Mode Key (M) | ON/OFF Power | Time Key (T)
| ( - ) | <-- Intensity Key (-)
+------------------------+
| [USB Port] | <-- Charging Port (Bottom)
+------------------------+
Button & Display Functions:
• Power Output \times 2: Ports on top to connect mask cables.
• Intensity Level: LED indicators for Levels I, II, and III.
• Time Selection: LED indicators for 5\text{ Min}, 10\text{ Min}, and 15\text{ Min}.
• Mode LED: Central light indicator for active light modes.
• ON/OFF Power (\text{c}): Main power button located at the center.
• Mode Key (\text{M}): Switch between light therapy wavelengths.
• Time Key (\text{T}): Select treatment duration.
• Intensity Keys (+ / -): Increase or decrease light output intensity.
• Charging Port: Type-C/USB connection at the bottom.
4. Quick Start Guide
• Step 1: Remove makeup and clean your face thoroughly.
• Step 2: (Optional) Apply a face mask or serum. Secure the device to your head using the Velcro straps.
• Step 3: Long press the power button for 3\text{ seconds} to start the device. By default, it runs automatically for 21\text{ minutes}.
• Step 4: After session completion, remove the mask and apply moisturizer to your skin.
5. Operation
Function Operating Instructions
ON / OFF Long press 3 seconds to turn the device on or off.
Automatic Mode Boot default is Automatic Mode. The program will automatically cycle through: • \text{IR }(850\text{nm}+1072\text{nm}) + \text{Red Light }(630\text{nm}+660\text{nm}) for 5\text{ minutes}. • \text{Orange Light }(850\text{nm}+1072\text{nm}+605\text{nm}) for 5\text{ minutes}. • Therapy for increased skin radiance and overall skin health.
Manual Mode In the working state, short press the Mode key (\text{M}) to switch between different light wavelengths. The selected lights will run for 5, 10, or 15\text{ minutes} before turning off automatically.
Intensity Level In the working state, short press the intensity keys (+ / -) to adjust power output. There are three levels of intensity (I, II, III).
Charging • When the indicator blinks, the device is in a low power state and needs charging. • The indicator lights red while charging. • All lights remain solid red when fully charged.
Usage Frequency It is recommended to use the skin rejuvenation mask 3–5 times per week.
6. Safety & Usage Precautions
(People unsuitable to use & general warnings)
1. This product has no fireproof function; please keep away from fire or corrosive liquids.
2. Do not disassemble or repair this product by yourself.
3. Please keep it out of reach of children.
4. This product has no waterproof function; do not submerge in water.
5. Do not press heavily on the mask to avoid deformation and device failure.
7. Product Specifications
Parameter Specification
Product Name LED Beauty Mask
Working Voltage 3.7\text{V}
Charging Voltage \text{DC } 5\text{V} \dots 1\text{A}
Rated Power \le 8\text{W}
Product Size Mask: 299 \times 209 \times 3.5\text{ mm} Controller: 153 \times 131.5 \times 28.2\text{ mm}
Net Weight Mask: \approx 196\text{ g} | Controller: $\approx 98\text{ g
Wavelength NIR light, Red light, Crimson light, Orange light
Cell Rated Capacity 1400\text{ mAh}
Material Silicone, ABS
Accessories Face mask, Controller, Straps, USB cable, Eye protector, User manual
Working Temperature 0^\circ\text{C} \sim 45^\circ\text{C}
Operating Humidity -10\% \sim 90\%\text{ RH}
Store Temperature -10^\circ\text{C} \sim 60^\circ\text{C}
Storage Humidity 5\% \sim 90\%\text{ RH}
8. Troubleshooting Guide
Problem / Indication Solution
Device does not turn on • Long press 3 seconds on the ON/OFF button to turn on. • Charge the device battery.
Battery low voltage The device needs to be charged via the provided USB cable.
USB plug/socket is bad • Re-insert the cable firmly. • Replace the USB cable or charging block.
Auto power-off • Long press 3 seconds on the ON/OFF switch to restart. • Battery may be depleted; charge the device.
The contour pro.

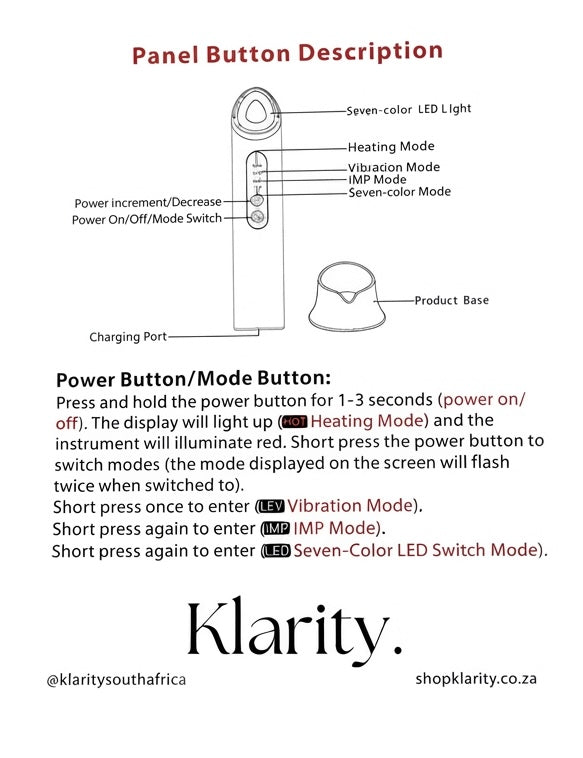

User guide and button sheet:.
What does each mode do?
LEV:
The LEV vibration mode on the Klarity face sculpting device utilizes high-frequency sonic pulsations to elevate your skincare routine. Designed to stimulate facial muscles and enhance microcirculation, this mode helps improve skin vitality, promotes lymphatic drainage to reduce puffiness, and assists in relieving facial tension. Additionally, the vibrating action supports deeper penetration of serums and moisturisers, maximising the absorption of your favourite skincare products for a smoother, firmer, and more radiant complexion.
IMP:
The IMP (Ion Massage / Ion Penetration) function leverages micro-current or galvanic ion technology to deeply infuse active ingredients from your serums, essences, and sheet masks into the deeper layers of the skin rather than just sitting on the surface. By utilizing electrical charges to enhance product delivery, it maximizes the efficacy of your skincare routine, ensuring that hydrating and anti-aging compounds work harder and more efficiently.
This function uses EMS technology. The EMS (Electrical Muscle Stimulation) technology - often associated with the device's comprehensive mode settings - delivers gentle, micro-current electrical impulses to stimulate the underlying facial muscles. This action mimics a natural workout for the face, helping to tone, tighten, and lift sagging contours while boosting cellular repair and collagen production. Together, the IMP and EMS functions work synergistically to improve skin firmness, enhance elasticity, and promote a sculpted, youthful appearance.
LED:
The Seven-Color LED Light function harnesses specific wavelengths of light photon energy to address a wide range of dermatological concerns at cellular levels:
- Red Light Therapy: Penetrates deeply into the skin to stimulate natural collagen and elastin production, smooth fine lines and wrinkles, and boost overall cellular repair for a firmer, more youthful complexion.
- Blue Light Therapy: Targets skin surface bacteria to help clear active breakouts, reduce skin inflammation, and balance oil production, making it ideal for blemish-prone skin.
- Green Light Therapy: Focuses on melanocytes to help correct hyperpigmentation, even out skin tone, and calm stressed or irritated skin for a balanced clarity.
- Yellow Light Therapy: Enhances lymphatic drainage, improves oxygen exchange within cells, and helps soothe redness, rosacea, or sunburned skin.
- Purple Light Therapy: Combines red and blue light benefits to promote tissue regeneration while addressing both acne-blemished areas and early signs of aging simultaneously.
- Cyan Light Therapy: Acts as a gentle, calming anti-inflammatory wavelength that helps relieve stressed skin and energizes cellular metabolism.
- White (or Mixed Spectrum) Light Therapy: Penetrates deep to accelerate active tissue metabolism, tighten loose skin contours, and comprehensively rejuvenate overall skin health.
